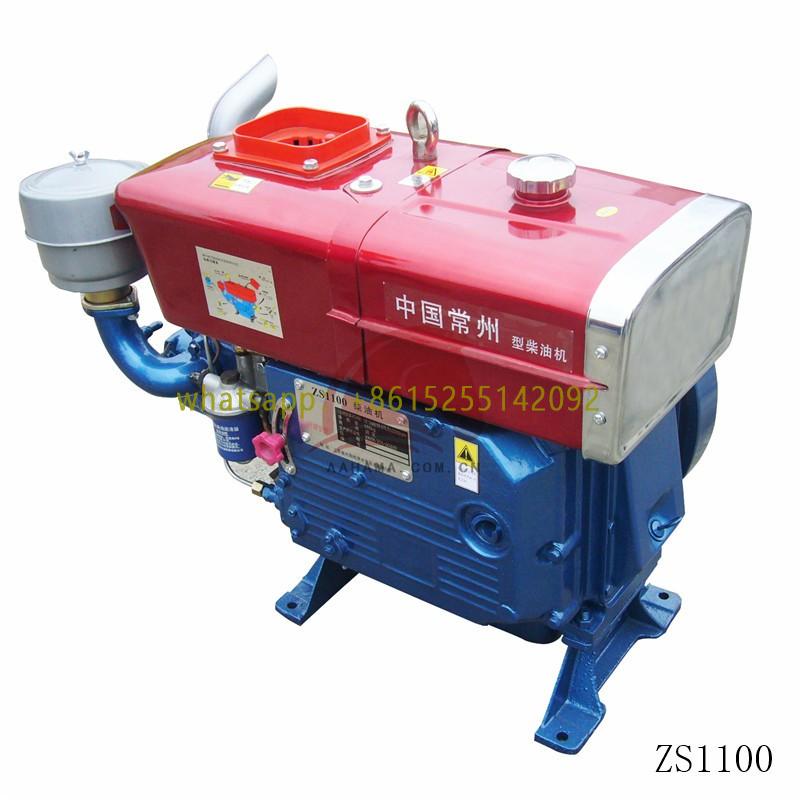

ZS1100 18Hp Water Cool Diesel Engine

• Engine Type: Single-cylinder, horizontal, 4-stroke, water-cooled, direct injection, naturally aspirated

• Bore × Stroke: 100 mm × 115 mm

• Displacement: 0.903 L

• Compression Ratio: 17.5:1

• Rated Power: 15 HP (11.03 kW) @ 2200 rpm

• 1-hour Power: 16.5 HP (12.1 kW)

• Max Torque: ≥58.8 N·m @ ≤1760 rpm

Consumption & Lubrication

• Fuel Consumption: ≤264 g/kW·h

• Oil Consumption: ≤1.7 g/kW·h

• Lubrication: Combined pressure and splash lubrication

• Cooling: Evaporative water-cooled (hopper type)

• Starting: Hand-cranked (electric start optional)

Dimensions & Weight

• Fuel Tank Capacity: 7.5 L

• Net Weight: ≤155 kg (hand-start version)

• Overall Dimensions (L×W×H): 821 mm × 410 mm × 671 mm

Overall Dimensions (L×W×H):  117 SETS/20FT Container

Shipping port: Shanghai China
