ZS195 13Hp Water Cool Diesel Engine

• Engine Type: Single-cylinder, horizontal, 4-stroke, water-cooled, direct injection

• Bore × Stroke: 95 mm × 115 mm

• Displacement: 0.815 L

• Compression Ratio: 17:1

• Rated Power: 13 HP (9.6 kW) @ 2200 rpm

• 1-hour Power: 10.7 kW @ 2200 rpm

• 12-hour Power: 9.7 kW @ 2200 rpm

Consumption & Lubrication

• Fuel Consumption: ≤244.8 g/kW·h

• Oil Consumption: ≤2.72 g/kW·h

• Lubrication: Combined pressure and splash lubrication

• Cooling: Water-cooled (evaporative)

• Starting: Hand-cranked (electric start optional)

Dimensions & Weight

• Fuel Tank Capacity: 12 L

• Net Weight: ≤145 kg (hand-start version)

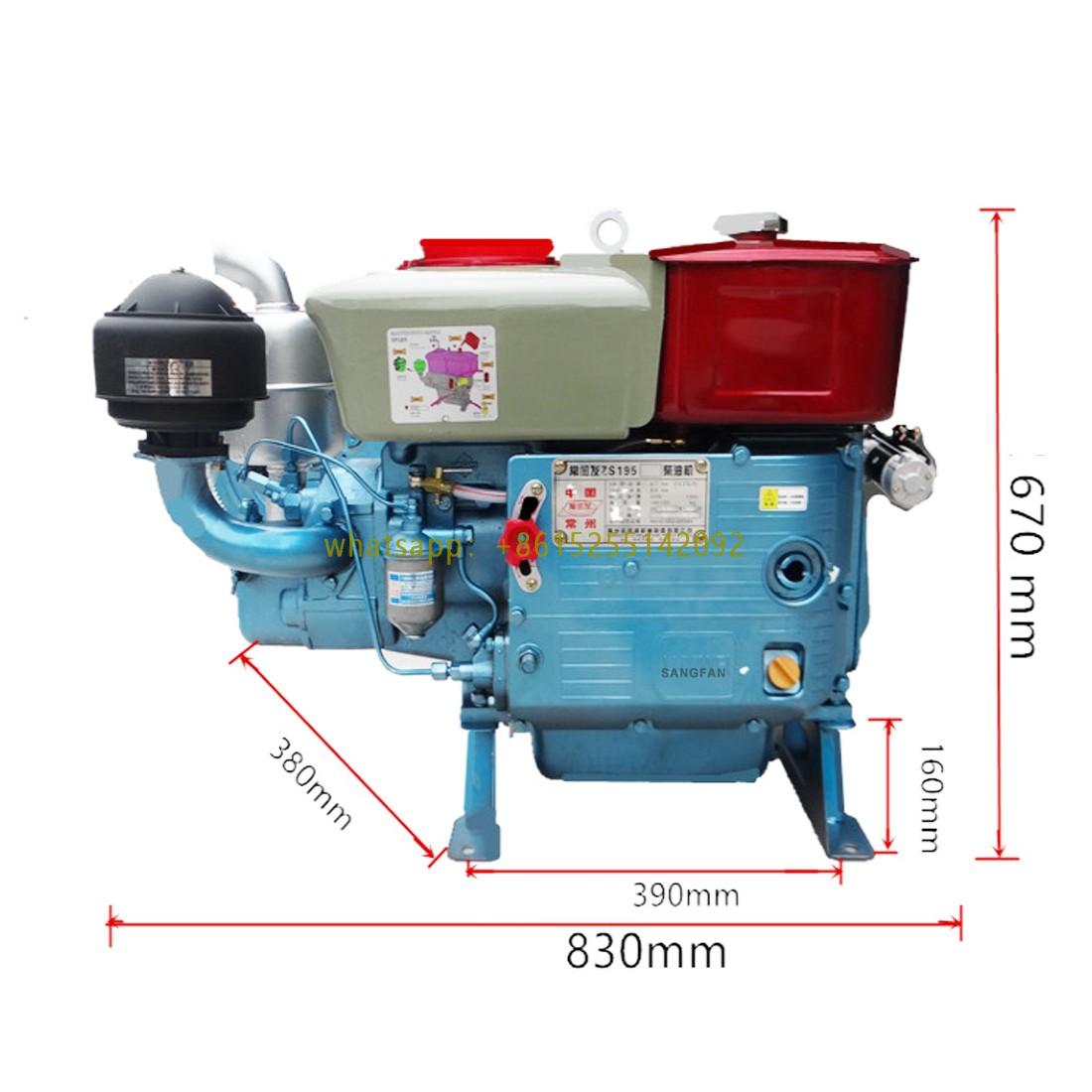

• Overall Dimensions: 920 mm × 440 mm × 760 mm

• Loading quantity: 117 sets/20FT Container
