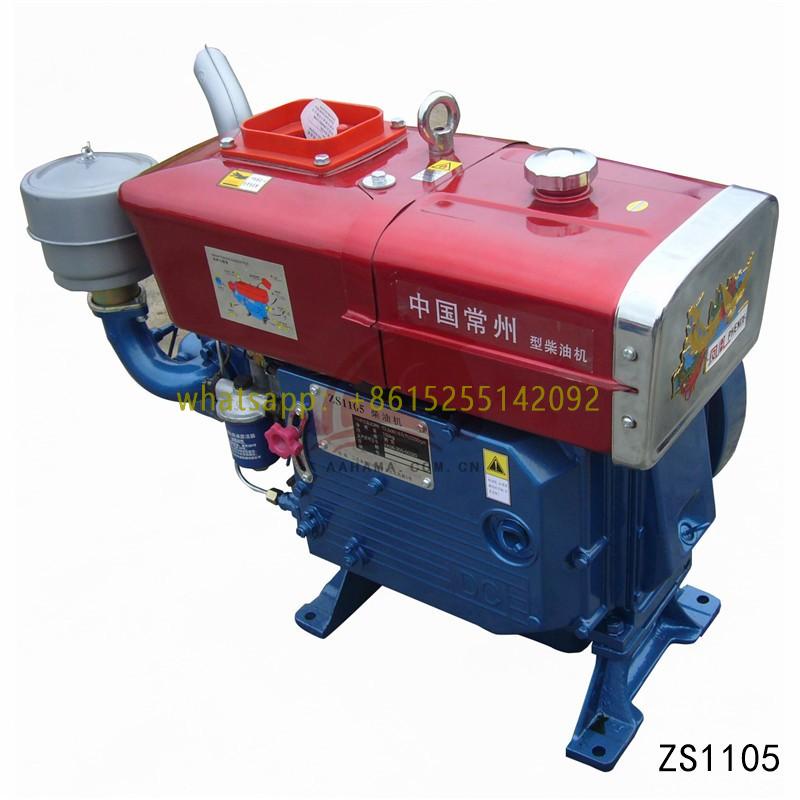

ZS1105 18Hp Diesel Engine

Type: Single-cylinder, horizontal, 4-stroke, water-cooled, naturally aspirated

Combustion: Direct injection (DI)

Bore × Stroke: 105 × 115 mm

Displacement: 0.996 L

Compression Ratio: 17:1

Rated Power (12h): 12.1 kW / 16.5 HP @ 2200 rpm

1-hour Power: 13.3 kW / 18.0 HP @ 2200 rpm

Fuel Consumption: ≤246.2 g/kW·h

Oil Consumption: ≤2.72 g/kW·h

Lubrication: Pressure + splash

Starting: Hand crank (optional electric start)

Cooling: Hopper (evaporative) or radiator

Dimensions (L×W×H): 930 × 440 × 760 mm

Net Weight: ~160–165 kg

Fuel Tank Capacity: 7.5 L

QTY: 117 SETS/20 ft container
